Schedule 40 PVC Pipe End Cap Bearings

Schedule 40 PVC Pipe End Cap Bearings

End Cap DiagramBlind Bore End Cap Bearing

Compare
SKU: N/A Category:

Notes: The standard color for the schedule 40 end cap bearings listed is beige. End cap bearings for smaller diameter schedule 40 pipe are available. Custom and schedule 80 end cap bearings can be supplied.

Part # Tube Gauge A B C D Shaft Dia.
EC-154-12-UT 1-1/2” SCH40 1.90” 1.61” 1.18” 0.29” 0.500”
EC-154-12-UB 1-1/2” SCH 40 1.90” 1.61” 1.18” 0.29” 0.500”
EC-154-58-UT 1-1/2” SCH 40 1.90” 1.61” 1.18” 0.29” 0.625”
EC-154-58-UB 1-1/2” SCH 40 1.90” 1.61” 1.18” 0.29” 0.625”
EC-204-12-UT 2” SCH 40 2.38” 2.07” 1.19” 0.29” 0.500”
EC-204-12-UB 2” SCH 40 2.38” 2.07” 1.19” 0.29” 0.500”
EC-204-58-UT 2” SCH 40 2.38” 2.07” 1.19” 0.29” 0.625”
EC-204-58-UB 2” SCH 40 2.38” 2.07” 1.19” 0.29” 0.625”
EC-254-12-UT 2-1/2” SCH 40 2.88” 2.47” 1.30” 0.33” 0.500”
EC-254-12-UB 2-1/2” SCH 40 2.88” 2.47” 1.30” 0.33” 0.500”
EC-254-58-UT 2-1/2” SCH 40 2.88” 2.47” 1.30” 0.33” 0.625”
EC-254-58-UB 2-1/2” SCH 40 2.88” 2.47” 1.30” 0.33” 0.625”
EC-304-12-UT 3” SCH 40 3.50” 3.06” 1.30” 0.33” 0.500”
EC-304-12-UB 3” SCH 40 3.50” 3.06” 1.32” 0.33” 0.500”
EC-304-58-UT 3” SCH 40 3.50” 3.06” 1.32” 0.33” 0.625”
EC-304-58-UB 3” SCH 40 3.50” 3.06” 1.32” 0.33” 0.625”

Reviews

There are no reviews yet.

Be the first to review “Schedule 40 PVC Pipe End Cap Bearings”

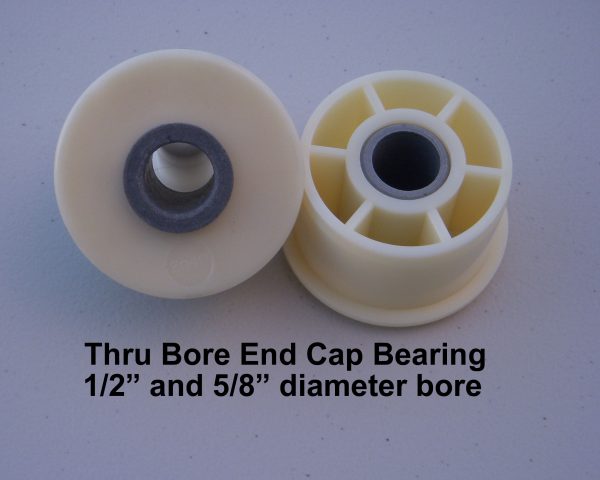

Thru Bore End Cap Bearing
